Product Description

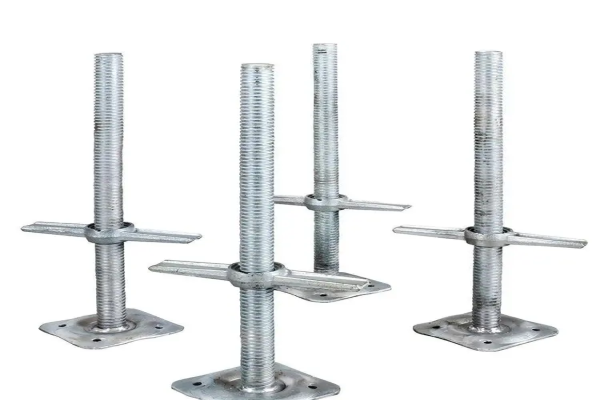

SOLID BASE JACK |
SCREW ROD | BASE PLATE |
DIAMETER | HEIGHT | LENGTH | WIDTH | THICKNESS |
30mm | 600mm | 120mm | 120mm | 4/5mm |
32mm | 600mm | 120mm | 120mm | 4/5mm |
34mm | 600mm | 120mm | 120mm | 5mm |
30mm | 600mm | 120mm | 120mm | 4/5mm |
32mm | 600mm | 120mm | 120mm | 4/5mm |
34mm | 600mm | 120mm | 120mm | 5mm |
HOLLOW BASE JACK |
SCREW ROD | BASE PLATE |
DIAMETER | HEIGHT | THICKNESS | LENGTH | WIDTH | THICKNESS |
34mm | 400mm | 4mm | 150mm | 150mm | 5/6mm |
34mm | 600mm | 4mm | 150mm | 150mm | 5/6mm |
38mm | 400mm | 4mm | 150mm | 150mm | 5/6mm |
38mm | 600mm | 4mm | 150mm | 150mm | 5/6mm |
38mm | 780mm | 4mm | 150mm | 150mm | 5/6mm |
48mm | 600mm | 4/5mm | 150mm | 150mm | 8mm |
48mm | 820mm | 4/5mm | 150mm | 150mm | 8mm |
